Full hydraulic drilling rig mainly used to drilling wells,irrigation wells,ground source heating pump wells and boreholes for other purposes,especially for mountain and rock formation well projects.The rig can be drill in different layers. Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coal bed methane, the shallow layer of shale gas, terrestrial heat. etc, and can also be used for coal-mine gas exploitation salvage work.The top mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
1. The chassis of the drilling rig adopts a professional walking motor with a reduction box, which has a longer life.
2. The gearbox is cast in one piece, with dual motors providing stronger power, larger torque, more durable, and low maintenance costs.
3. The use of professional excavator chassis, strong and durable, large load-bearing, wide chain plate, little damage to hard roads.
4. Each hydraulic oil pipe is covered with a thick protective jacket to make the service life of the oil pipe longer.
5.Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.
Products Description
|

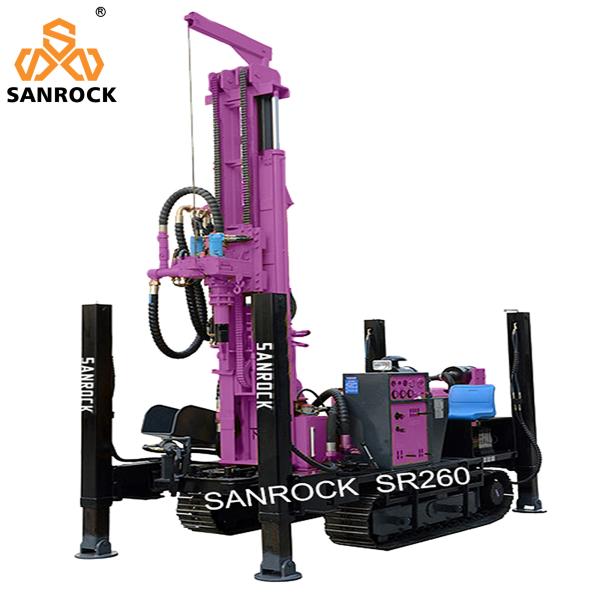

Product Name: hydraulic water well drilling rig
|
|
Brand Name:Sanrock
|
|
Name:SR260
|
|
Drilling depth:260m
|
|
The hole diameter:140-305mm
|
|
Using air pressure:1.7-3.0MPA
|
|
Air consumption:17-31m3/min
|
|
Swing torque:4000-5300N.m
|
|
The penetration efficiency:10-35m/h
|
|
Swing speed:45-70rpm
|
|
Equipped capacitor:70KW
|
|
Walking speed:2.5km/h
|
|
Drill pipe diameter:76mm / 89mm
|
|
Drill pipe length:1.5m /2.0m /3.0m
|
|
Dimension:4000×1850×2300mm
|
|
The weight:6500KG
|
|
|
Company Profile
1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
