Small Core Drilling Rig Hydraulic Borehole Underground Tunnel Core Drilling Equipment

Name: Small Core Drilling Rig Hydraulic Borehole Underground Tunnel Core Drilling Equipment
Brand: SANROCK
Price: 1 USD

Wholesale Small Core Drilling Rig Hydraulic Borehole Underground Tunnel Core Drilling Equipment from china suppliers

Brand Name : SANROCK

Model Number : SRC200UG

Certification : CE ISO 9001:2015

Place of Origin : Zhejiang, China

MOQ : 1Set/Sets per Month

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500000Set/Sets per Month

Delivery Time : 15-25days

Packaging Details : Nude package for machines, Wooden box package for spare parts, Or customer demand.

Product name : core drilling rig ,core drilling machine

Name : Small Core Drilling Rig, Core Drilling Equipment

Type : Core Drilling Rig

Drilling depth : 200m

Drilling diameter : AQ BQ NQ HQ

Feature : High Drilling Efficiency,Hydraulic Controlling,Portable

Application : coring machine,geological exploration

Power Type : Electric

Power head stroke : 800㎜

Drilling inclination angle : 0-360

Azimuth angle : 0-360

Spindle rotational speed : 300-900r/min

Spindle torque : 800Nm

Main pump max pressure : 25MPa

Auxiliary pump max pressure : 25MPa

Hydraulic system working pressure : 21MPa

Console/size : 520㎜×400㎜×920㎜

Weight : 520Kg

Power car/size : 1400㎜×600㎜×1120㎜

Main body/outer size : 1800㎜×600㎜×1400㎜

Axial pulling force : ≥60KN

Axial feeding force : ≥30KN

Condition : New

Contact Now

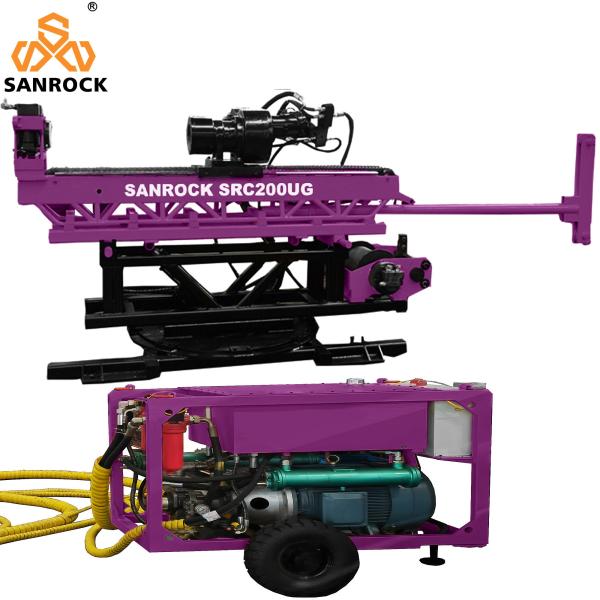

Small Core Drilling Rig Hydraulic Borehole Underground Tunnel Core Drilling Equipment

Hydraulic underground core drilling rig is suitable fro drilling holes for the purpose of mine exploring,also they could be used in surface coring,railway engineering,tunneling,construction and water conservancy project.Is designed especially for underground 360°drilling work,to drill holes in the tunnel. capable of diamond core drilling and other drilling works.

Small Core Drilling Rig Hydraulic Borehole Underground Tunnel Core Drilling Equipment

Features:
1. The sliding and extending & retracting function of the mast makes it convenient for the bottom of mast to touches the ground or platform, thus the drill rig will be more stable.
2. The swinging arm and mast can do luffing movement, which satisfy the request of multi-angle drilling.
3. The core drilling machine system of oatation,feed,pumping and clamping relies on fluid drive.
4. Under bad transportation condition, the main frame also can be disassembled ,easy to transport.
5. It is light weight, small size, easy operation, with good performance, simple structure and easy to maintain.

Small Core Drilling Rig Hydraulic Borehole Underground Tunnel Core Drilling Equipment

Products Description

SRC200UG HYDRAULIC UNDERGROUND TUNNEL DRILLING RIG Technical Parameter
Spindle rotational speed	300-900r/min	Spindle torque	800Nm
Axial feeding force	≥30KN	Axial pulling force	≥60KN
Hydraulic system working pressure	21MPa	Max pressure	25MPa
Main pump max pressure	25MPa	Auxiliary pump max pressure	25MPa
Power head diameter	78mm	Power head stroke	800㎜
Drilling inclination angle	0-360	Azimuth angle	0-360
Motor Power	22Kw	Motor rotational speed	1480rpm
Main body/outer size	1800㎜×600㎜×1400㎜	Weight	710Kg
Power car/size	1400㎜×600㎜×1120㎜	Weight	520Kg
Console/size	520㎜×400㎜×920㎜	Weight	75Kg

Drilling depth of various diameters
SPEC	Bit		Drill Rod		Drill Depth/m
	Outer Dia. mm	Inner Dia. mm	Outer Dia. mm	Inner Dia. mm	Down	Horizontal	UP
AQ	φ47. 6	φ27	φ44. 5	φ34. 9	400m	300m	180m
BQ	Φ59.5	Φ36.4	Φ55.6	Φ46	350m	250m	130m
NQ	Φ75.31	Φ47.6	Φ69.9	Φ60.1	280m	200m	100m

Small Core Drilling Rig Hydraulic Borehole Underground Tunnel Core Drilling Equipment

Production shop display

Small Core Drilling Rig Hydraulic Borehole Underground Tunnel Core Drilling Equipment

Company Profile

Small Core Drilling Rig Hydraulic Borehole Underground Tunnel Core Drilling Equipment

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
